Run Groundrule in CI

In CI, Groundrule does three jobs:

• sync --check fails when the agent files are out of date;
• check --base fails when a pull request adds a finding that fails the check;
• scan --upload, on a schedule, keeps your workspace’s evidence current.

This page shows a complete GitHub Actions setup, then GitLab CI and any other runner, and how to create the token CI uses.

Today, checks run where you run the CLI, so a failing CI step is what blocks a merge. A GitHub App that checks pull requests directly is not yet available.

1. Create a token

Repositories connected to the platform need a token in CI. (Offline repositories need none: skip to step 3.)

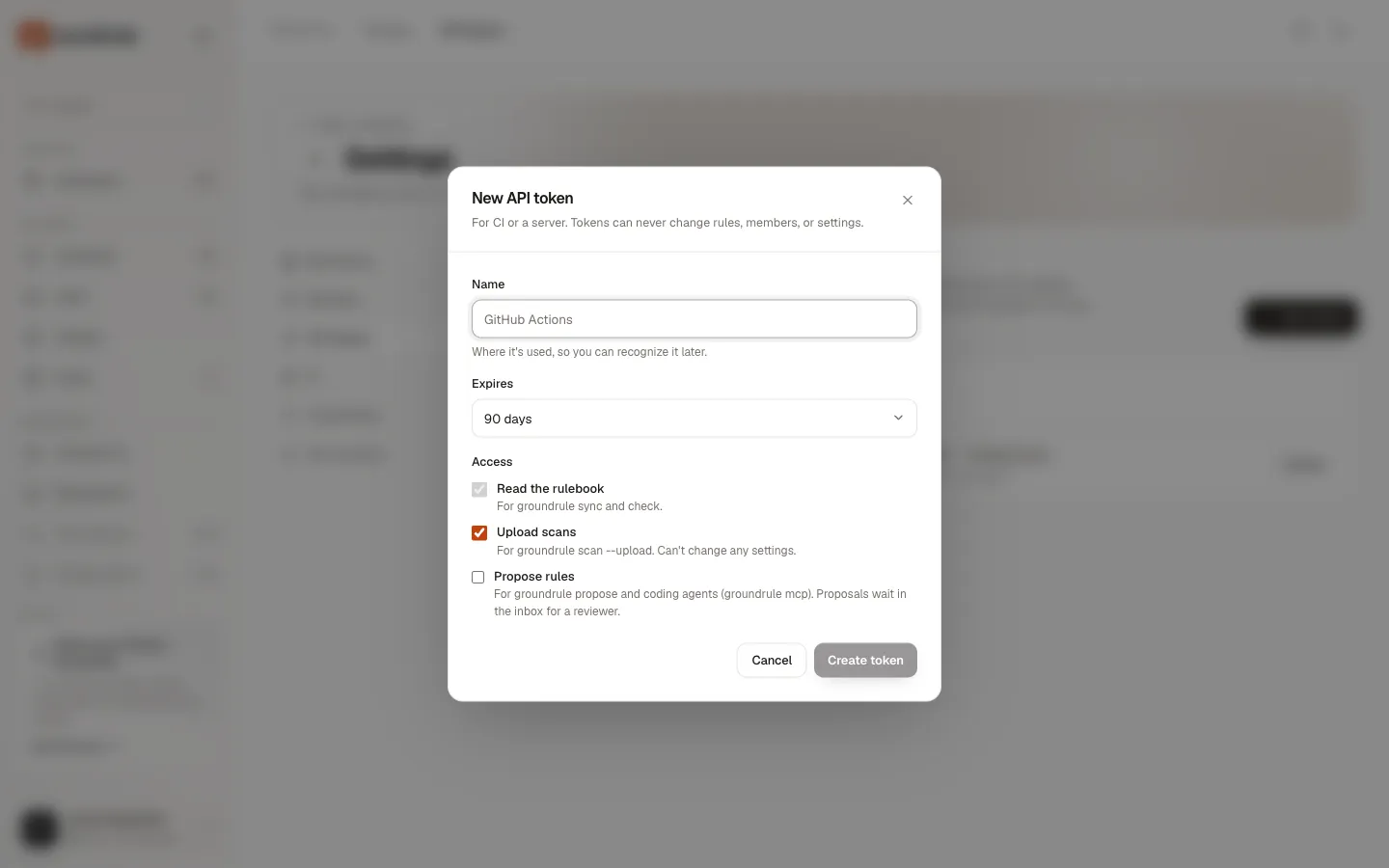

1. In the dashboard, open Settings → API tokens and choose New token.
2. In Name, say where it’s used, such as GitHub Actions · checkout-api.
3. In Expires, choose 30 days, 90 days, 1 year, or No expiry.
4. Under Access, check what the jobs need (see the table below). Read the rulebook is always included.
5. Choose Create token. Copy the token: “This is the only time it’s shown.”

CI job	Access it needs
sync --check, check, standards, explain	Read the rulebook (always included)
scan --upload	Upload scans
propose	Propose rules

A token acts as the person who created it, in that workspace. It can’t change the rulebook, members, or settings. You can have up to 25 active tokens per workspace; revoke unused ones in the same page.

2. Store it as GROUNDRULE_TOKEN

Save the token as a secret in your CI system, and expose it to the job as the environment variable GROUNDRULE_TOKEN. The CLI uses it instead of any saved sign-in.

In GitHub: Settings → Secrets and variables → Actions → New repository secret, named GROUNDRULE_TOKEN. An organization secret works for many repositories.

3. GitHub Actions

Pull requests

.github/workflows/groundrule.yml:

name: Groundrule

on:
  pull_request:

permissions:
  contents: read

jobs:
  groundrule:
    runs-on: ubuntu-latest
    timeout-minutes: 10
    env:
      GROUNDRULE_TOKEN: ${{ secrets.GROUNDRULE_TOKEN }}
    steps:
      - uses: actions/checkout@v5
        with:
          fetch-depth: 0   # needed to compare against the base branch
          persist-credentials: false

      - uses: actions/setup-node@v5
        with:
          node-version: 22

      - name: Agent instructions are up to date
        run: npx --yes @groundrule/cli sync --check

      - name: Check the pull request
        run: npx --yes @groundrule/cli check --base "origin/${{ github.base_ref }}" --summary "$GITHUB_STEP_SUMMARY"

What each part does:

Part	Why
fetch-depth: 0	check --base needs the base branch and the history since your branch left it. With the default shallow clone, the check stops with Cannot compare against "origin/main". Fetch it first (e.g. git fetch origin main).
node-version: 22	The CLI needs Node.js 22 or later.
npx --yes	Downloads the CLI without asking.
sync --check	Fails (exit 1) when AGENTS.md and the other agent files don’t match the rulebook. Fix it by running sync and committing.
check --base origin/<base>	Checks only what the pull request changed. It fails on blockers at Enforce by default.
--summary "$GITHUB_STEP_SUMMARY"	Adds a Markdown table of findings to the run’s summary page.

You should see each step pass or fail. On failure, the step log shows the findings, as in Check your changes, and the job summary shows a table headed, for example, “Groundrule · ✕ 1 standard failed”. The table lists up to 50 findings.

Tip

The github-actions pack has rules for workflows themselves, such as GHA-001 “Pin third-party actions to a full commit SHA” and GHA-002 “Declare minimal token permissions in every workflow”. If your workspace adopted it, pin actions/checkout and actions/setup-node to commit SHAs.

Pull requests from forks

GitHub doesn’t give secrets to workflows triggered by pull requests from forks. In a platform repository, those runs stop with “Not signed in to acme-payments …”. Offline repositories aren’t affected.

Findings in code scanning (optional)

To see findings inline on the pull request’s diff in GitHub code scanning, write a SARIF file and upload it. Replace the check step with:

      - name: Check the pull request
        run: npx --yes @groundrule/cli check --base "origin/${{ github.base_ref }}" -f sarif -o groundrule.sarif --summary "$GITHUB_STEP_SUMMARY"

      - name: Upload findings to code scanning
        if: always()
        uses: github/codeql-action/upload-sarif@v3
        with:
          sarif_file: groundrule.sarif
          category: groundrule

and add the permission:

permissions:
  contents: read
  security-events: write

The SARIF file is written even when the check fails, and if: always() uploads it anyway. Code scanning must be available for the repository on GitHub.

Nightly scans

Scans feed the workspace’s evidence and promotions, which need at least 2 scans per repository. Run one on a schedule, on your default branch. The token needs Upload scans.

.github/workflows/groundrule-scan.yml:

name: Groundrule scan

on:
  schedule:
    - cron: "17 3 * * *"   # every night at 03:17 UTC
  workflow_dispatch:

permissions:
  contents: read

jobs:
  scan:
    runs-on: ubuntu-latest
    timeout-minutes: 15
    steps:
      - uses: actions/checkout@v5
        with:
          persist-credentials: false
      - uses: actions/setup-node@v5
        with:
          node-version: 22
      - run: npx --yes @groundrule/cli scan --upload
        env:
          GROUNDRULE_TOKEN: ${{ secrets.GROUNDRULE_TOKEN }}

You should see the log end with “✓ Uploaded to Acme Payments: https://app.groundrule.dev/acme-payments/scans/…”. Add --no-snippets to send no code, or --no-import to leave out instructions, tool settings, and owners. See Scan a repository.

A packaged action

A packaged Groundrule GitHub Action is not yet published. Use the npx steps above.

GitLab CI

Add a masked CI/CD variable GROUNDRULE_TOKEN (Settings → CI/CD → Variables in GitLab), then in .gitlab-ci.yml:

groundrule:
  image: node:22
  rules:
    - if: $CI_PIPELINE_SOURCE == "merge_request_event"
  variables:
    GIT_DEPTH: 0
  script:
    - git fetch origin "$CI_MERGE_REQUEST_TARGET_BRANCH_NAME"
    - npx --yes @groundrule/cli sync --check
    - npx --yes @groundrule/cli check --base "origin/$CI_MERGE_REQUEST_TARGET_BRANCH_NAME" -f markdown -o groundrule.md
  artifacts:
    when: always
    paths:
      - groundrule.md

groundrule-scan:
  image: node:22
  rules:
    - if: $CI_PIPELINE_SOURCE == "schedule"
  script:
    - npx --yes @groundrule/cli scan --upload

Create a pipeline schedule in Build → Pipeline schedules for the scan job.

Writing a Markdown report with -o keeps it as an artifact, but hides the findings from the job log. To see them in the log as well, run check a second time without -f, or drop -f markdown -o groundrule.md.

Any other CI system

Every CI system needs the same four things:

1. Node.js 22 or later.

2. A clone with the base branch and its history. Fetch the base branch explicitly if the runner clones shallowly: git fetch origin main.

3. GROUNDRULE_TOKEN set from a secret (platform repositories only).

4. The commands, which exit with a non-zero code on failure:

   npx --yes @groundrule/cli sync --check
   npx --yes @groundrule/cli check --base origin/main

Exit codes are the same everywhere:

Code	sync --check	check	scan
0	Up to date	Passed	Ran (and uploaded)
1	Out of date	Failed	Not used
2	Configuration or sign-in problem	Configuration, git, or sign-in problem	Couldn’t run or upload

The CLI turns colors off when output isn’t a terminal, and never opens a browser when the CI variable is set.

If your runner doesn’t use the default Groundrule address, set GROUNDRULE_URL as well.

Speed up installs

npx downloads the CLI on every fresh runner. To make that faster and reproducible:

• Pin the version: npx --yes @groundrule/cli@0.1.0 check …. Every run uses the same CLI and the same bundled packs.

• Cache npm’s download folder. In GitHub Actions:

      - uses: actions/cache@v4
        with:
          path: ~/.npm
          key: npm-groundrule-0.1.0

• Or make it a devDependency (see Install the CLI), install with npm ci and your usual npm cache, then run npx groundrule check ….

Change what fails

Decide in .groundrule/config.yaml (enforcement.failOn), or for one job with --fail-on:

# Report everything, never fail (for a trial period)
npx --yes @groundrule/cli check --base origin/main --fail-on none

# Fail on warnings too
npx --yes @groundrule/cli check --base origin/main --fail-on warning

In a platform repository, the rule’s stage decides first: only Advise and Enforce rules are checked, and Advise blockers count as warnings. See Check your changes.

If something goes wrong

Message	Fix
Cannot compare against "origin/main". Fetch it first (e.g. git fetch origin main).	Use fetch-depth: 0, or fetch the base branch before check.
Not signed in to acme-payments on https://app.groundrule.dev. Run groundrule login (or set GROUNDRULE_TOKEN in CI).	GROUNDRULE_TOKEN isn’t set in this step, or is empty.
GROUNDRULE_TOKEN isn't valid. It may have expired or been revoked; create a new one in Groundrule → Settings → API tokens.	Create a new token and update the secret.
This token is for …, but this repository uses ….	The token belongs to another workspace.
✕ Agent instructions are out of date:	Run npx @groundrule/cli sync locally and commit. In a platform repository, this also happens after someone changes the rulebook.
Upload failed: this token can't upload scans.	Create a token with Upload scans.
